Conversion Kit 5-TLX
The 5-TLX Conversion kit, when combined with the TLX Drive Unit, creates the Quintuple Lance Feeder from the TLX Series (5-TLX). It can also be used to convert a 1-TLX, 2-TLX, 3-TLX, or 4-TLX to a 5-TLX. When converting a 1-TLX to a 5-TLX, it is important to include a standard cover in your configuration, as the 1-TLX only comes with an extra high cover to accommodate the second motor.
Part Number: 710206U
Description
The 5-TLX Conversion kit, when combined with the TLX Drive Unit, creates the Quintuple Lance Feeder from the TLX Series (5-TLX). It can also be used to convert a 1-TLX, 2-TLX, 3-TLX, or 4-TLX to a 5-TLX. When converting a 1-TLX to a 5-TLX, it is important to include a standard cover in your configuration, as the 1-TLX only comes with an extra high cover to accommodate the second motor.

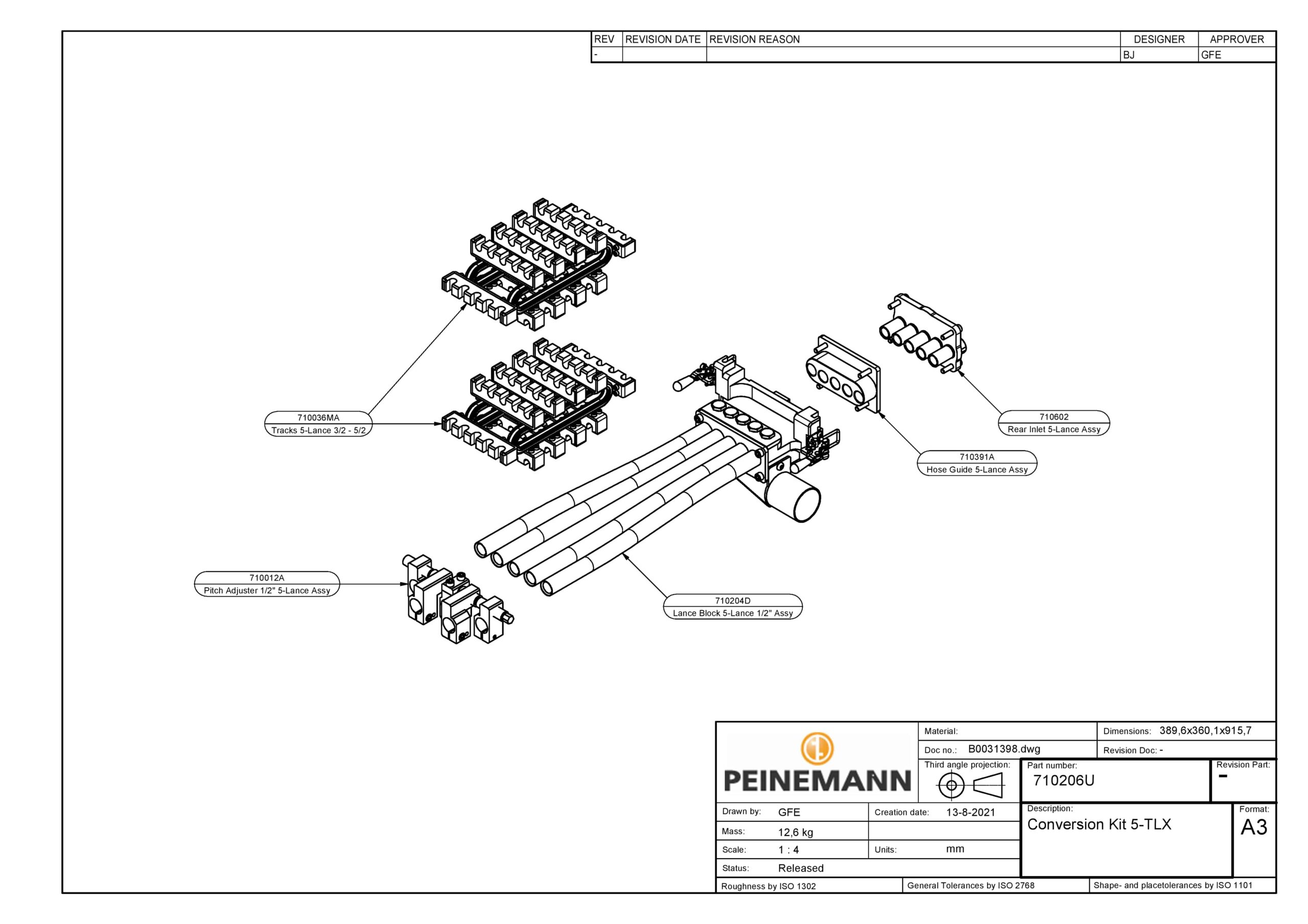

5-TLX Conversion kit includes
- Track for 3/2, 4/2, 5/2 & 4/4 hoses (5-TLX) (2 pieces) (P/N 710036MA-2)
- Lance block for 5-TLX (Incl. 5 fixed guide tubes 1/2″ SCH40 L = 400 mm (15.748 in) ID = 15.9 mm (0.625 in) (P/N 710204D)
- Pitch adjuster 1/2″ 5-TLX (P/N 710012A)
- Front hose guide 5-TLX (P/N 710391A)
- Rear inlet 5-TLX (P/N 710602)
Specifications 5-TLX
| General | |
| Length (drive unit) | 46.5 cm (18.3 in) |
| Width (drive unit) | 26.5 cm (10.4 in) |
| Height (drive unit) | 31.5 cm (12.4 in) |
| Weight (drive unit incl. cartridges and motor) | 17 kg (37.5 lb) |
| Hose feed rate | 40 – 70 cm/s (15.7 – 27.6 in/s) |
| Max. push/pull force | 130 kg (287 lb) |
| Pitch adjustment range | 25 – 53 mm (0.98 – 2.09 in) |
| Motor | |
| Motor model | Atlas Copco LZB46-ML-AR007-50 |
| Max. output | 0.62 kW (0.83 hp) |
| Min. air pressure | 3.0 bar (43.5 psi) |
| Operating air pressure | 6.3 bar (91.4 psi) |
| Max. air pressure | 7.0 bar (101.5 psi) |
| Max. air consumption | 14 l/s (29.7 cfm) |
| Stall torque | 32 Nm (23.3 ft lb) |
| Vane type | Lubrication free |
| Hose specifications | |
| Hose size | 3/2 – 5/2 |
| Hose outer diameter | 7 – 11.5 mm (0.28 – 0.45 in) |
| Max. hose coupling diameter | 15 mm (0.59 in) |
